You see that a fiber optic cable assembly has many materials. Each material is picked for a reason. The core is made of glass or plastic. It moves light signals. The fiber optic cladding wraps around the core. It keeps the light inside. Buffer tubes are filled with gel. They help absorb stress. Kevlar yarn makes the cable strong. It is used in bulletproof vests too. Fiber Reinforced Plastic (FRP) and metal armor protect the cable. They stop crushing and bad weather. The outer sheath is UV-resistant. It keeps the optical fiber safe from harm.
Fiber optic cables use different materials. Each material has a special job. The core is made of glass or plastic. It carries light signals to send data.
Glass cores work best for long distances. They are good for fast data transfer. Plastic cores are used for short and flexible jobs.
Cladding goes around the core. It keeps light signals inside. This helps data move better and stops signal loss.
The buffer layer protects the fibers. It keeps them safe from damage and weather. This makes sure the cables work well.
Connectors join fiber optic cables together. Picking the right connector helps the network work better. It also lowers signal loss.
The core is the main part of every fiber optic cable. It lets light travel through the cable. This helps you send information fast and safely. There are two main core materials: glass and plastic. Each one works best for different jobs.
Here is a table that lists the most common core materials and their features:
| Material Type | Description | Performance | Typical Use |
|---|---|---|---|
| Glass | Made from very pure silicon dioxide (SiO2). It is very clear and loses little light. | Best for sending data far and in fast networks. | Internet backbone, telecom, data centers |
| Plastic | Made from acrylate or polyimide. It bends easily and costs less. | Good for short cables and places that need bending. | Home networks, automotive, industrial controls |
Tip: Pick a glass core if you need to send data fast and far. If you need a short or bendy cable, a plastic core is a good choice.
Glass cores use silicon tetrachloride that is almost perfectly pure. This keeps the core clear so light can move with little loss. If there are impurities, the core gets cloudy and loses signal. Pure cores work better and last longer.
Plastic cores use acrylate or polyimide. These make the cable bendy and simple to put in. You often see plastic optical fiber in homes or cars. Plastic is cheaper, but it cannot send light as far as glass.
The core does the most important job in the cable. It sends light signals that carry your data. You need the core to move signals for internet, phone, or video.
How the core is made changes how well the cable works. A good core keeps light inside and moves it forward with little loss. This gives you fast data and strong signals. The size and material of the core decide how much data it can send. Bigger cores carry more light, so more information moves at once.
Glass cores are used in networks that need lots of data and long cables. Plastic cores are best for short cables and places that need to bend. Both types help you send data quickly and safely.
Note: The core’s purity and design matter a lot. They decide how much data you can send and how far it goes. For the best results, pick cables with very pure glass cores.
Comparison List: Glass vs. Plastic Core Performance
Glass core: Best for long cables, fast networks, and little signal loss.
Plastic core: Good for short cables, bendy setups, and lower price.
You find fiber optic cable cores in many places. Internet companies use glass cores for fast and steady service. People at home and car makers use plastic cores because they are easy to put in and cost less. Both types help you send light and data where you need it.
You find cladding as a key layer in every fibre optic cable. This layer surrounds the core and plays a big part in how the cable works. Manufacturers use materials with a lower refractive index than the core. This difference helps keep light signals inside the core, so you get better data transmission.
Cladding usually has a refractive index of about 1.47. The core sits at around 1.49. This small gap, about 1%, makes a big difference in how well the cable holds light.
Makers add special dopants to both the core and cladding. These dopants help control the refractive index and improve performance.
Most cladding uses pure glass or plastic, just like the core. The choice depends on where you use the fibre optic cable and what you need it to do.
You see cladding in both glass and plastic optical fiber cables. Glass cladding works best for networks that need to send information far and fast. Plastic cladding fits short cables and places that need more bending. The right cladding material helps you get strong signals and clear data.
Tip: When you pick a fibre optic cable, check the cladding material. A good cladding keeps your light signals safe and your data clear.
Cladding does more than just wrap around the core. You rely on it to keep your light signals moving the right way. The lower refractive index in the cladding makes total internal reflection possible. This means light stays inside the core and travels long distances without leaking out.
Cladding helps you in several ways:
It reduces attenuation, so your signal stays strong over long distances. You get clearer data transmission.
Cladding stops light from scattering. This keeps your information safe and prevents signal loss.
The cladding isolates the core from outside interference. You get better signal quality and less noise.
It acts as a shield, supporting the core and keeping it in place.
Cladding minimizes crosstalk between fibers. Your networks run smoother and faster.
When you use a fibre optic cable, the cladding makes sure your data gets where it needs to go. It keeps light signals inside the core, so you get fast and reliable information transfer. The difference in refractive indices between the core and cladding sets the acceptance angle for incoming light. This affects how much data you can send and how well your cable handles dispersion.
You see cladding as a silent helper in every optical fiber. It works behind the scenes to keep your networks running and your data safe. Without good cladding, your fibre optic cable would lose light and information quickly.
Note: Cladding is not just a cover. It is a key part of every fibre optic cable. It keeps your signal strong, your data clear, and your networks reliable.
The buffer layer is an important part of every fibre optic cable. It sits just outside the cladding and gives extra safety to the glass fibers. Makers use different things for the buffer layer. You often find these:
Primary coating, also called the primary buffer
Plastic materials
Acrylate
Silicone
Other polymers
The primary coating is a thin plastic layer. It covers the optical fiber and keeps it safe from scratches and bumps. Acrylate is a very common buffer material. You also see silicone and other special polymers. These materials do not block light or mess up data. They add a soft shield that helps the fibre optic cable last longer.
Tip: When you pick a fibre optic cable, look for a buffer layer made with good plastic or acrylate. This helps your cable handle stress and keeps your data safe.
The buffer layer does more than just cover the fiber. It protects the core and cladding from damage. The buffer acts like a cushion. It shields the optical fiber from bending, pulling, or crushing. This is important because the glass inside is very thin and can break easily.
Here are the main jobs of the buffer layer:
Gives physical protection to the glass fibers.
Keeps the signal strong by stopping reflections at the edge.
Blocks things like water and dust.
The buffer layer also keeps water and dirt away from the fiber. This stops problems that could hurt your data. By keeping the fiber safe from outside things, the buffer keeps your signal strong and your data clear. You get better performance and longer cable life.
If you want your fibre optic network to work well, you need a good buffer layer. It keeps the optical fiber safe, helps fast data transmission, and lets your cable handle tough places. The buffer layer is small, but it makes a big difference in how well your fibre optic cables work.
You find strength members inside every fiber optic cable. These materials protect the fragile optical fiber. They help your cable work well. The most common strength member is aramid yarn. People often call it Kevlar. Aramid yarn has high tensile strength. It does not stretch much. This means your cable can handle pulling and bending. It stays strong during installation or use.
Here is a table that shows how aramid yarn works as a strength member:
| Strength Member Type | Description |
|---|---|
| Aramid Yarn | Used for its high tensile strength and low stretch properties, ensuring the cable does not stretch under tension. Often referred to by the trade name Kevlar, it provides cushioning for the fibers and absorbs tension during installation. |
Some cables use other materials too. You might see fiberglass rods or steel wires. These add extra support. They help outdoor or underground cables last longer. The right strength member helps your cable last longer. It keeps your data transmission safe.
Tip: Pick aramid yarn if you need strong support. It gives flexibility and protects the optical fiber. This material helps your cable survive tough conditions.
Strength members make your fiber optic cable durable. You need them to keep the cable safe. They stop stretching, bending, and breaking. The strength member sits at the center of the cable. It supports the optical fiber bundle. This support helps the cable resist pulling forces. It keeps light signals moving without interruption.
Strength members help you in many ways:
They give structural support.
They make the cable stronger.
They resist bending forces and protect optical fibers.
These features help your cable handle rough installation. They help in harsh environments. You get better data transmission. The optical fiber stays safe inside the cable. Strength members help prevent damage. They protect the cable when you pull or bend it. Your data stays clear. Your network runs smoothly.
Note: Strength members are important for durability. They protect the optical fiber. They keep your data safe. They help your cable last longer.
The cable jacket keeps your fiber optic cable safe. Makers use different materials for jackets. Each material has special features. You see these materials from top suppliers like wctxtech.com. Here are the most common choices:
Polyethylene (PE): This jacket resists UV rays. It is flexible and protects against scratches and cracks. PE jackets are used for outdoor cables.
Polyvinyl Chloride (PVC): This jacket gives strong protection. It slows down fire and is flexible. PVC jackets are good for indoor cables.
Low Smoke Zero Halogen (LSZH): This jacket stops fire and makes little smoke or gas. LSZH jackets are used in offices or crowded places.
Cross-Linked Polyethylene (XLPE): This jacket stands up to sunlight and water. XLPE jackets last longer outside and handle bad weather.
Polyurethane (PU): This jacket is tough and resists chemicals. PU jackets protect cables in factories and other hard places.
You pick the jacket material based on where you use the cable. Each type gives you safety, strength, and flexibility.
The cable jacket does more than just cover the cable. It protects your fiber optic cable in many ways:
Environmental Protection: The jacket keeps out water, sunlight, chemicals, and heat. Your cable works in rain, sun, or tough places.
Mechanical Protection: The jacket takes hits and stops crushing or pulling. Your cable stays safe during setup and use.
Fire Safety: LSZH and PVC jackets help stop fires and lower smoke. This keeps people safe if there is a fire.
Here is a table that compares how jacket materials protect against dangers:
| Material Type | Environmental Resistance Characteristics |
|---|---|
| Simple Plastics | Basic protection from water and bumps. |
| Advanced Polymers | Better at stopping chemicals, sunlight, and fire. |
| Fluoropolymers | Great at fighting chemicals in tough places. |
| CPE Thermoplastics | Good at blocking sunlight, best for outdoor use. |
| Cross-Linked Polyethylene (XLPE) | Very strong against sunlight, lasts long outside. |
| PVC Thermoplastics | Slows fire and lowers bad smoke. |
| LSZH | Makes little smoke and no bad gas, good for tight spaces. |
Tip: When you choose a fiber optic cable, look at the jacket material. The right jacket helps your cable last longer and keeps your network safe.
Fiber optic connectors join cables together. They help your network work well. The materials in connectors are important. They change how long the connector lasts. They also affect how well it works. Most connectors use stainless steel, ceramic, or strong plastic. These materials make the connection steady. They help stop signal loss.
Here is a table that lists connector parts and their materials:
| Component | Material Used |
|---|---|
| Ferrule | Ceramic or stainless steel |
| Housing | Plastic or metal |
| Alignment sleeve | Metal or polymer |
| Latch mechanism | Metal or plastic |
Connectors made from ceramic or stainless steel last longer. They keep your signal strong. Cheaper connectors use weak plastic. These can break or wear out fast. You want connectors that keep out dust and dirt. Dirt can block light and weaken your signal. Even tiny bits can change how fiber optics works. Vibration and stress can hurt connectors. Strong materials help stop bending and breaking.
Tip: Pick connectors with tough materials. This helps your network work better and last longer.
There are many types of fiber optic connectors. Each type fits different jobs and cables. The most common types are LC, SC, ST, FC, and MPO. Each type has its own size and way to lock.
Here is a table that compares connector types:
| Type of Connector | Description | Common Applications |
|---|---|---|
| LC | Small, 1.25 mm ferrule, easy to use | Data centers, enterprise networking |

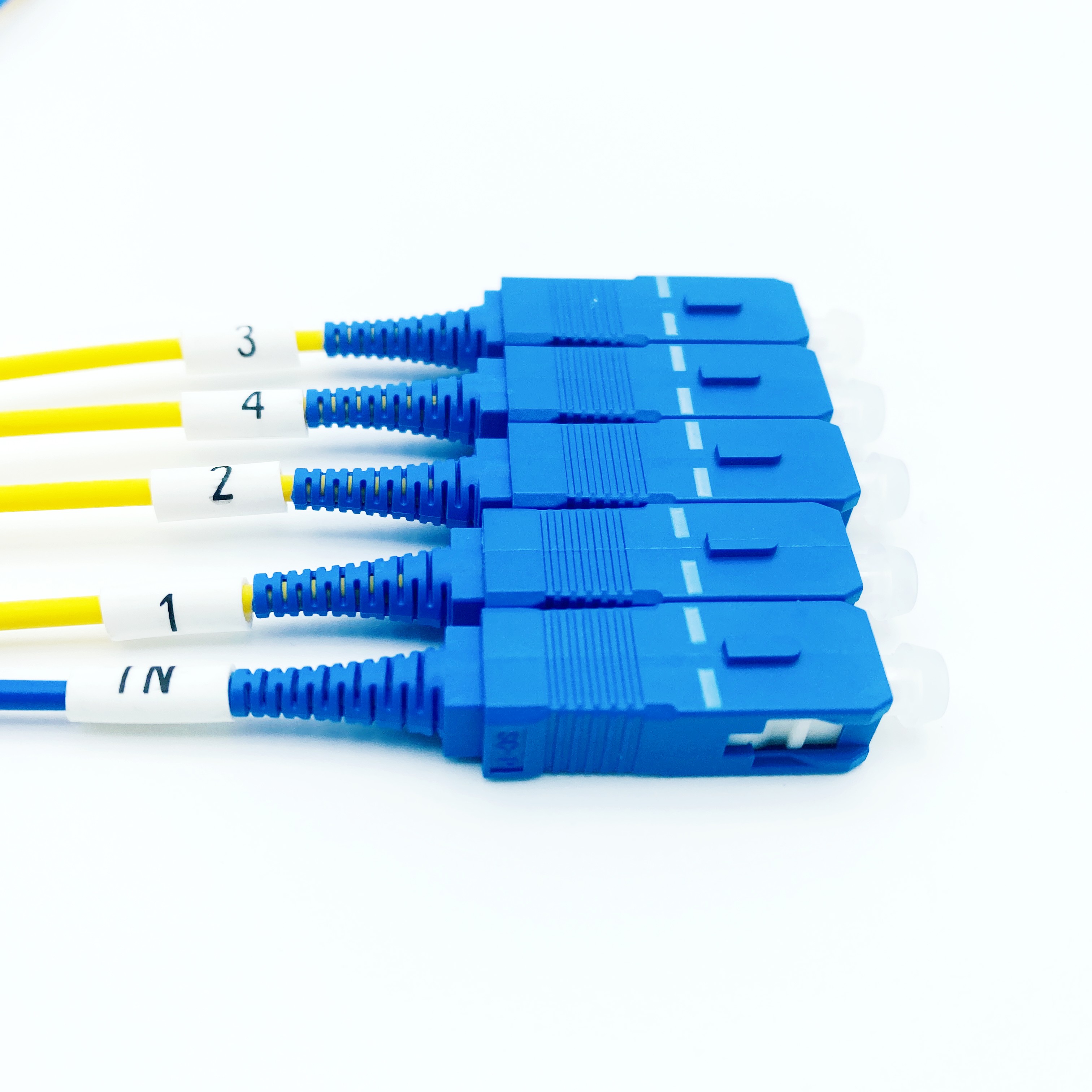

| SC | Bigger, 2.5 mm ferrule, push-pull latch | Telecom networks, internet providers |
| ST | Simple, twist-lock, low cost | Budget projects, general use |
| FC | Screw-in, keyed, strong connection | High-performance, single-mode fiber |
| MPO | Multi-fiber, high-density | Data centers, high-speed computing |
You choose a connector type for your network needs. LC connectors are good for crowded places. SC connectors are used in telecom and internet. ST connectors are cheap and simple. FC connectors give strong links for fast fiber optic work. MPO connectors hold many fibers. They are great for big networks.
Different connector types change how well your network works. You need to match the connector to your cable. Think about how much signal you lose, how strong the connector is, and how easy it is to use. Always check your network rules to pick the right connector.
Note: The right connector type gives you fast and steady data. It helps your fiber optic cables work well and keeps up with new technology.
You need every part of a fiber optic cable to work well. The core and cladding move light for strong signals. The buffer layer and strength members stop bending and pulling damage. The cable jacket keeps out water, chemicals, and sunlight. Connectors link cables for smooth internet. Good materials like silica and aramid fiber make cables last longer. These cables can handle crushing, heat, cold, and signal loss.
| Property | Description |
|---|---|
| Tensile Strength | Handles pulling without breaking |
| Bend Radius | Stops signal loss when bent |
| Crush Resistance | Takes pressure and does not break |
| Temperature Range | Works from -20°C to 70°C |
| Humidity Resistance | Blocks water and rust |
| UV Resistance | Protects cables used outside |
| Attenuation | Keeps the light signal strong |
| Bandwidth | Lets you have fast internet |
You get strong cables when makers use the best materials. New material science helps you get faster internet and clearer signals.
You get faster data transfer with fibre optics because light signals move quickly through the optical fibre core. This lets you send information at high speed and with high bandwidth. Fibre optic networks support more data than copper cables.
You rely on the buffer layer to shield the optical fibre from bending and pulling. It keeps light signals safe and helps your cable last longer. The buffer stops water and dust from hurting your data transmission.
You see glass in fibre optic networks because it sends light signals farther and keeps data clear. Glass has less signal loss and supports high bandwidth. Plastic works for short cables but does not match glass for long-distance transmission.
You can use fibre optics outside because the cable jacket resists sunlight, water, and chemicals. Strength members like aramid yarn protect the optical fibre from crushing and pulling. This keeps your signal transmissions strong in harsh environments.
You use connectors to join fibre optic cables for smooth data transfer. Good connectors keep light signals steady and reduce signal loss. They help your networks run fast and support high-speed data transmission.
