In modern optical networks, the PLC Splitter hides inside fiber distribution frames, street cabinets and wall boxes, quietly dividing a single optical signal into many branches. It is a small component, but the PLC Splitter has a big influence on link budget, network topology, long term reliability and upgrade flexibility. For many engineers and B2B buyers, understanding the PLC Splitter in detail is the key to making better technical and purchasing decisions.
As fiber to the home, campus networks and data centers continue to expand, the PLC Splitter has become a standard building block. But do you really know what is inside a PLC Splitter, how it is specified and how it should be installed If you work with optical projects, knowing the answers can save both time and money.
A PLC Splitter is a passive planar lightwave circuit device that uses an integrated waveguide chip to split one or more input fibers into multiple output fibers with controlled ratios, stable loss and wide wavelength performance, making it an essential element in modern optical distribution networks.
This means the PLC Splitter is not just a generic “splitter.” It is a carefully engineered optical component with specific insertion loss, uniformity, polarization dependent loss, return loss, temperature range and mechanical reliability. For B2B users, seeing the PLC Splitter as a fully specified product rather than a simple accessory helps align engineering requirements and procurement decisions.
In the following sections, we will walk through what a PLC Splitter is, how it works, how different package styles are designed, what key parameters you must check, and how to select, install and maintain a PLC Splitter in real projects. We will also use data style descriptions and tables to make design comparison and budgeting easier for engineers and buyers.
Main sections in this article
What is a PLC Splitter in fiber optic networks
How does a PLC Splitter work
Main package styles and structures of PLC Splitter
Key technical parameters of PLC Splitter
Applications of PLC Splitter in modern networks
How to choose the right PLC Splitter for your project
Installation and maintenance tips for PLC Splitter
PLC Splitter compared with other optical splitters
FAQs about PLC Splitter
Conclusion: what every engineer should remember about PLC Splitter
A PLC Splitter is a passive optical power distribution component based on a planar lightwave circuit chip that divides an incoming optical signal into multiple outgoing signals, with fixed splitting ratios and stable performance across the standard single mode wavelength window.
In other words, a PLC Splitter takes one or two input fibers and outputs many fibers, such as 2, 4, 8, 16, 32 or 64. Unlike simple mechanical couplers, the PLC Splitter uses a silica glass chip with integrated waveguides to control how the light is split. This allows the PLC Splitter to offer precise, repeatable performance for each output port, which is crucial in large passive optical networks where many subscribers share one central source.
In real deployments, the PLC Splitter is often the central element that enables a point to multipoint topology. A single feeder fiber from a central office or equipment room connects to the input of a PLC Splitter, and the multiple outputs then connect to distribution fibers going to buildings, floors or individual users. By using this simple structure, a network operator can serve many endpoints without needing separate active equipment for each branch.
From a B2B perspective, the PLC Splitter is a product family, not a single item. It includes different split ratios (1x2 to 1x64 and 2x2 to 2x64), different connector types, different cable diameters and different housing formats. When you see “PLC Splitter” in a catalog, the detailed options behind that keyword are what determine whether it fits your network design.
A PLC Splitter works by guiding light through a silica based planar waveguide chip, where the optical field is gradually divided into multiple branches so that each output fiber receives a controlled fraction of the input power with high uniformity.
The core of a PLC Splitter is its planar lightwave circuit chip. This chip is fabricated on a silica substrate using processes similar to those used in integrated circuits. Tiny waveguides are created with specific widths, heights and refractive indices. These waveguides form a network that starts with one or two inputs and fans out into many outputs. Because the geometry is defined lithographically, the PLC Splitter can achieve very precise control of splitting ratios between all outputs.
When light enters the input fiber of a PLC Splitter, it couples into the waveguide on the chip. As it travels along the chip, the waveguide slowly splits into multiple paths through specially designed branching regions. Each branch carries a portion of the optical power. The design ensures that the optical length and coupling conditions are very similar for each path, which is why a PLC Splitter can maintain good uniformity among its numerous output ports.
After the waveguide network, the light from each branch is coupled back into output fibers through a fiber array block. The input fibers, the waveguide chip and the output fibers are all aligned and fixed inside the PLC Splitter package. In daily use, technicians only see the pigtails or connectors, but inside the small housing, the PLC Splitter chip is performing complex integrated optics to divide the signal accurately.
PLC Splitter products are available in several main package styles, including bare fiber, mini module, ABS box, cassette and rack mount structures, which all use the same internal chip but are optimized for different installation environments and cabling methods.

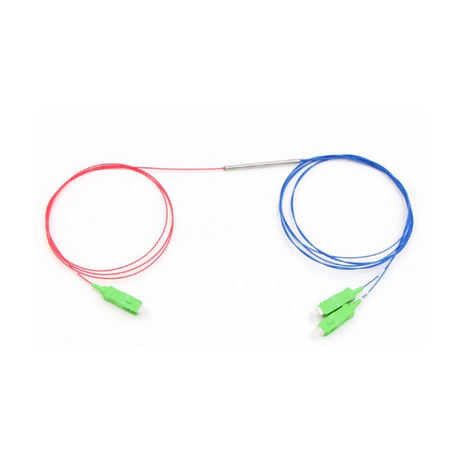

The simplest structure is the bare fiber PLC Splitter. In this version, the planar chip and fiber arrays are protected in a compact cylindrical or rectangular tube, and the input and output fibers exit as bare coated or buffered fibers. This type of PLC Splitter is ideal for splicing directly into closures and trays where space is limited and there is no need for external connectors.
Mini module PLC Splitter products add a small rectangular housing around the chip and fiber transitions. The mini enclosure provides better mechanical protection and easier fiber management while keeping volume low. Mini modules are widely used in small fiber distribution boxes, floor boxes and wall mounted enclosures where technicians still mainly use fusion splicing for connections.
ABS box PLC Splitter modules and cassette PLC Splitter modules are designed for clearer field handling and structured cabling systems. They use larger housings with mounting holes or frame slots, built in cable strain relief, port labeling and sometimes pre terminated connectors such as SC or LC. Rack mount PLC Splitter assemblies go one step further, integrating multiple PLC chips into a 19 inch or similar panel that can be installed directly in a distribution frame. All of these structures rely on the same planar lightwave circuit principle, but they offer different levels of protection, density and convenience for B2B projects.
The key technical parameters of a PLC Splitter include insertion loss, loss uniformity, polarization dependent loss, return loss, operating wavelength range, operating temperature range and mechanical reliability, and these values determine whether a PLC Splitter can meet the requirements of a specific network design.
Insertion loss is the primary figure that engineers check first. For a PLC Splitter, insertion loss includes the ideal theoretical splitting loss and the excess loss caused by imperfections in the chip and packaging. For example, a high quality 1x2 PLC Splitter might have typical insertion loss around 4 dB per port, a 1x4 PLC Splitter around 7 to 7.5 dB, a 1x8 PLC Splitter around 10.5 to 11 dB, and a 1x32 PLC Splitter around 16.5 to 17 dB. These values are used directly in link budget calculations.
Loss uniformity is just as important. It measures the difference in insertion loss between the best and worst output ports of a PLC Splitter. In a well designed product, uniformity might be within 0.6 dB for a 1x4 PLC Splitter, within 1.0 dB for a 1x8 PLC Splitter, and within around 1.5 to 2.5 dB for a 1x32 or 1x64 PLC Splitter. Better uniformity means all users connected through that PLC Splitter receive similar optical power, which simplifies system engineering.
Other parameters define stability and compatibility. Polarization dependent loss is kept low so that the PLC Splitter performance does not change significantly as polarization drifts in the fiber. Return loss should be high, indicating low back reflection, which protects lasers and reduces interference. The operating wavelength range of a standard single mode PLC Splitter covers approximately 1260 to 1650 nm, allowing use in multiple transmission windows and with different services on the same fiber. Finally, the operating temperature range, often from around minus 40 degrees to plus 85 degrees, and the mechanical strength values guarantee that the PLC Splitter will survive outdoor cabinets and frequent handling in real projects.
PLC Splitter modules are used in FTTH, FTTB, passive optical LAN, CATV, data center and test environments to distribute optical signals from a small number of feeders to a larger number of drops in a cost effective and passive way.
In fiber to the home networks, a PLC Splitter is typically placed in a central office or outdoor cabinet. One high power downstream signal enters the PLC Splitter, which then divides the power to many subscribers. Upstream signals from all users are also combined by the PLC Splitter back toward the central office. The passive nature of the PLC Splitter means it requires no local power, which greatly simplifies deployment in street level cabinets.
In fiber to the building or campus networks, a PLC Splitter can be used on each floor or in each wing to branch a single riser fiber into multiple horizontal fibers. For example, a 1x8 PLC Splitter can feed eight offices, each with its own outlet. This reduces the number of riser fibers while still giving each workspace its own dedicated connection. The compact size of mini modules and ABS box PLC Splitter units makes them easy to install in building distribution panels.
Data centers and test environments also use PLC Splitter products. In data centers, a 1x2 PLC Splitter can mirror traffic to monitoring systems without impacting the main link, or it can support redundancy architectures. Test labs use PLC Splitter modules to feed multiple devices from a single optical source and to simulate multiuser access scenarios. In all these cases, the stable and predictable performance of the PLC Splitter across a wide wavelength range is the foundation for accurate testing and reliable operation.
Choosing the right PLC Splitter for a project requires matching split ratio, package style, connector type, fiber type, performance level and environmental rating to the actual network topology and installation conditions.
The first decision is split ratio. You should estimate the number of endpoints that a given PLC Splitter needs to serve, as well as the maximum acceptable insertion loss. If the distance between central equipment and user is short and transmitter power is high, a 1x32 PLC Splitter may be acceptable. For longer spans or lower power, a 1x8 or 1x16 PLC Splitter is often safer. Always calculate the link budget using realistic insertion loss values for the PLC Splitter and other components.
The second decision is package style. If you are working inside a small closure or need to splice all fibers, bare fiber or mini module PLC Splitter products may be the best. For cabinet or rack installations, ABS box PLC Splitter modules and cassette PLC Splitter modules that come with connectors and mounting hardware can dramatically reduce installation time. Consider also the cable diameter, pigtail length and connector type offered with each PLC Splitter, so they match the rest of your hardware.
The third decision is performance grade and environment. Some PLC Splitter products are offered in standard grade and premium grade versions. Premium versions may offer slightly lower insertion loss, better uniformity or wider operating temperature range. In harsh outdoor cabinets or regions with large temperature swings, selecting a PLC Splitter with a robust temperature rating and strong mechanical design is critical. For high density data center installations, it may be more important that the PLC Splitter has excellent return loss and stable behavior over time.
Good installation and maintenance of a PLC Splitter focus on proper mounting, controlled fiber routing, clean connectors and regular testing to prevent unnecessary loss and ensure long term stability of the optical network.
During installation, the PLC Splitter should be mounted in the intended location first, whether it is a tray, cabinet, wall box or rack frame. The device should be fixed firmly so it cannot move when doors open or cables are pulled. Input and output fibers or patch cords from the PLC Splitter should then be routed through appropriate cable management paths, avoiding tight bends and mechanical stress. Respecting minimum bend radius is especially important for maintaining low loss.
All connectors associated with the PLC Splitter must be carefully cleaned and inspected before mating. Dust, oil or scratches on connector faces can introduce several decibels of extra attenuation, which may be mistakenly blamed on the PLC Splitter itself. Using standard fiber cleaning tools and inspection scopes, technicians should ensure that both the PLC Splitter ports and the connecting patch cords are in good condition before closing the cabinet.
For maintenance, it is good practice to include the PLC Splitter in regular inspection rounds. Visual checks can detect crushed cables, pinched fibers or loose adapters. Measurements with an optical power meter and light source can confirm whether the insertion loss through the PLC Splitter remains within the expected range. If a sudden change in loss is detected, technicians should first recheck connectors and fiber routing. Only after those steps should the PLC Splitter module itself be replaced. Designing networks around modular PLC Splitter units makes such replacement quick and minimally disruptive.
Compared with fused biconic taper splitters and wavelength selective splitters, the PLC Splitter offers higher port counts, better output uniformity, wider wavelength flatness and more compact integration, which is why PLC Splitter technology is the default choice in new passive optical networks.
Fused biconic taper splitters are made by fusing and stretching optical fibers together to create a coupling region. While they can work well for low split ratios such as 1x2 or 1x4, they become more difficult to manufacture with tight tolerances at 1x16 and above. A PLC Splitter solves this issue by implementing the splitting function in a planar chip, so manufacturing remains consistent even at high port counts like 1x32 or 1x64. This is a major reason why PLC Splitter products dominate new deployments.
Another difference lies in wavelength behavior. A well designed PLC Splitter provides nearly flat splitting performance from 1260 to 1650 nm, allowing the same device to carry multiple wavelength services. FBT devices often show more variation with wavelength and sometimes are not suitable for the full band. Wavelength selective splitters, such as those based on thin film filters or grating structures, are designed to separate specific wavelength channels rather than to evenly distribute power, so they are used for different tasks like WDM rather than general branching.
From a B2B buyer’s standpoint, the PLC Splitter is usually the most economical choice when you need many uniform outputs and a simple power splitting function. It offers a good balance of cost, performance and reliability, and the wide range of PLC Splitter packages and configurations makes it easy to standardize across multiple projects and network layers.
Common questions about PLC Splitter include its impact on signal quality, its maximum practical split ratio, how to test it in the field and how long it can last in real operating environments.
One frequent question is whether a PLC Splitter degrades the signal. The answer is that every PLC Splitter introduces predictable insertion loss because it divides power, but it does not distort the waveform if the device is properly designed. As long as the link budget includes the PLC Splitter loss and enough margin is reserved, the network will still meet bit error and service quality requirements.
Another question is how many users can be connected through one PLC Splitter. Technically, a 1x64 PLC Splitter can feed 64 outputs, and even higher ratios exist. However, the practical split ratio depends on other factors such as transmit power, receiver sensitivity, fiber length and additional components. Many operators select 1x16 or 1x32 PLC Splitter modules as a good compromise between coverage and performance, then adjust topology based on local conditions.
Testing a PLC Splitter in the field is straightforward. Technicians measure input power and each output power, calculate the loss for each path, and compare these values with the datasheet. If the measured insertion loss and uniformity match the expected ranges, the PLC Splitter is performing correctly. Aging and environmental stress are considered in the design, so a high quality PLC Splitter installed in a suitable enclosure can operate reliably for many years with only routine cleaning and inspection.
A PLC Splitter is a compact but powerful passive device that enables efficient sharing of fiber infrastructure, and understanding its structure, parameters, split ratios and installation requirements is essential for designing and maintaining high quality optical networks.
For engineers and B2B buyers, the key lesson is that the PLC Splitter should be treated as a critical, fully specified component, not as a simple accessory. Its insertion loss, uniformity, wavelength range, polarization dependent loss, return loss, temperature range and mechanical strength all play important roles in whether a network will perform well over its lifetime.
By becoming familiar with typical data for different PLC Splitter split ratios and package styles, you can quickly evaluate catalogs, carry out accurate link budget calculations and select the best PLC Splitter configuration for each project. When combined with proper installation and maintenance, the PLC Splitter becomes a reliable, predictable element in your design that helps deliver high performance to every user on the network.
