You use a fiber optic connector to join optical fibers. This makes a safe path for light signals. These connectors help you make fast and correct connections. This keeps your network working well. There are many types of fiber optic cable connectors. Each type is made for different jobs and places. Some common fiber optic connectors are SC, LC, ST, FC, MPO, and MT-RJ. Choosing the right fiber connector makes your network work better and more reliably.
Fiber optic connectors link optical fibers together. They let light signals pass with little loss. Pick the right connector to make your network work better.
There are many connector types, like LC, SC, and MPO. Each type has its own job. Choose connectors that fit your space and needs for the best results.
Keep fiber connectors clean to stop signal loss. Clean them often to avoid network problems from dirt or bad alignment.
Learn how connector locks work. Some use push-pull, bayonet, or screw locks. Each lock gives a different level of safety and is easy to use.
Match your connector to where you use it. Think about dust, water, and temperature changes. This helps your network stay strong and work well.
A fiber connector is a small part that joins two fiber optic cables. You use a fiber optic connector to make a safe and exact link between fibers. This link lets light signals move from one cable to another with almost no loss. You can connect or unplug these cables fast, which makes it easy to set up or change your network.
Fiber optic connectors have a special shape to keep the fiber ends lined up. This lining up is very important because even a tiny space or mistake can cause signal loss. Each connector type looks different and locks in its own way. Some connectors push and pull to lock, while others twist to stay in place. These designs help you get a steady connection every time.
You need fiber optic connectors to keep your network working well. They are important for sending data because they help light signals move with little loss. If you use a bad connector or put it in wrong, you might get high connector loss. This loss can make your signal weak and slow down your network.
Note: Keeping connector loss low is very important for a strong network and fast data.
Here are some reasons why fiber optic connectors are important in your network:
They fix many problems that copper systems have.
They use light signals, so you do not have to worry about electromagnetic interference.
They help you keep a steady connection, which makes your network more reliable.
Different places, like factories or data centers, need connectors that fit their special needs.
Industry rules, like those from the IEC Technical Committee 86 and ISO/IEC 14763-3, help design and test fiber optic connectors. These rules help you pick connectors that meet tough quality and performance standards. When you choose the right fiber connector, you help your network stay strong, fast, and reliable.
Fiber optic connectors help join optical fibers. They keep your network strong and working well. There are many types of fiber optic connectors. Each type has a special design and job. Picking the right fiber connector gives you good performance. It also helps your data move safely and quickly. Let’s see the main fiber optic connectors and how they work in different places.
Tip: The right fiber optic cable connectors can make your network faster. They also help your data move more quickly.
You use LC fiber optic connectors when you do not have much space. LC connectors are small and use a push-pull lock. The ferrule is 1.25mm, so you can fit many in a small spot. You see LC connectors in crowded optical frames and data centers.
Here is a table that shows the LC connector’s parts and where you use it:
| Connector Type | Locking Mechanism | Ferrule Size | Application Suitability |
|---|---|---|---|
| LC | Push-pull | 1.25mm | High density in optical distribution frames |
You use LC fiber connector types in many places:
Telecommunications: You use LC connectors for fiber-to-the-home and fast internet.
Data Centers: LC connectors save space in panels and boxes.
Enterprise Networks: You make cabling easier for video calls and cloud work.
Medical and Industrial: LC connectors help with medical pictures and machines.
Long-Haul Networks: LC connectors give fast links over long distances.
LC fiber optic connectors are small, work well, and are easy to put in. You get good data movement and a strong network.
SC fiber optic connectors are easy to use. They have a simple plug-in design. You use SC connectors for many-core connections. The ferrule is 2.5mm, so it is easy to hold. SC connectors work in business networks. They support both single-mode and multimode fiber optic cables.
Here is a table that shows SC connector parts and signal loss:
| Connector Type | Locking Mechanism | Ferrule Size | Application Suitability |
|---|---|---|---|
| SC | Plug-in | 2.5mm | Multi-core connections |
| Fiber Type | Insertion Loss (dB per connector pair) |
|---|---|
| Single-mode | < 0.2 |
| Multimode | ~ 0.3 |
You pick SC fiber connector types because they are easy to put in. They also keep your data moving well. SC fiber optic connectors help keep signal loss low. This is important for strong data movement.
ST fiber optic connectors use a bayonet lock. You twist and lock them in place. This gives a safe and steady connection. The ferrule is 2.5mm. ST connectors are common in many networks. They work well where you connect and disconnect cables a lot.
| Connector Type | Locking Mechanism | Ferrule Size | Application Suitability |
|---|---|---|---|
| ST | Bayonet | 2.5mm | Standard connections |
You find ST fiber optic connectors in factories and plants. The bayonet lock keeps your connection steady. It also keeps your signal strong. The tough build helps them last a long time. ST connectors are good for places where you connect and disconnect often.
The bayonet lock keeps the connection safe.
The strong build helps them last longer.
The design is good for many connections and disconnections.
FC fiber optic connectors use a metal thread to lock. You screw them in to keep them safe. This works even if there is a lot of shaking. The ferrule is 2.5mm. FC connectors were the first to use ceramic ferrules. This helps line up the fibers and keeps signal loss low.
| Connector Type | Locking Mechanism | Ferrule Size | Application Suitability |
|---|---|---|---|
| FC | Metal thread | 2.5mm | First to use ceramic ferrule |
FC fiber connector types are best for factories and phone networks. You get a safe connection and low signal loss. The strong ferrule can take bumps and tough weather.
The screw lock keeps the connection safe.
Low signal loss keeps your data strong.
The ferrule is tough and takes shocks.
It can handle heat and wet places.
FC fiber optic connectors help you keep your data moving in hard places.

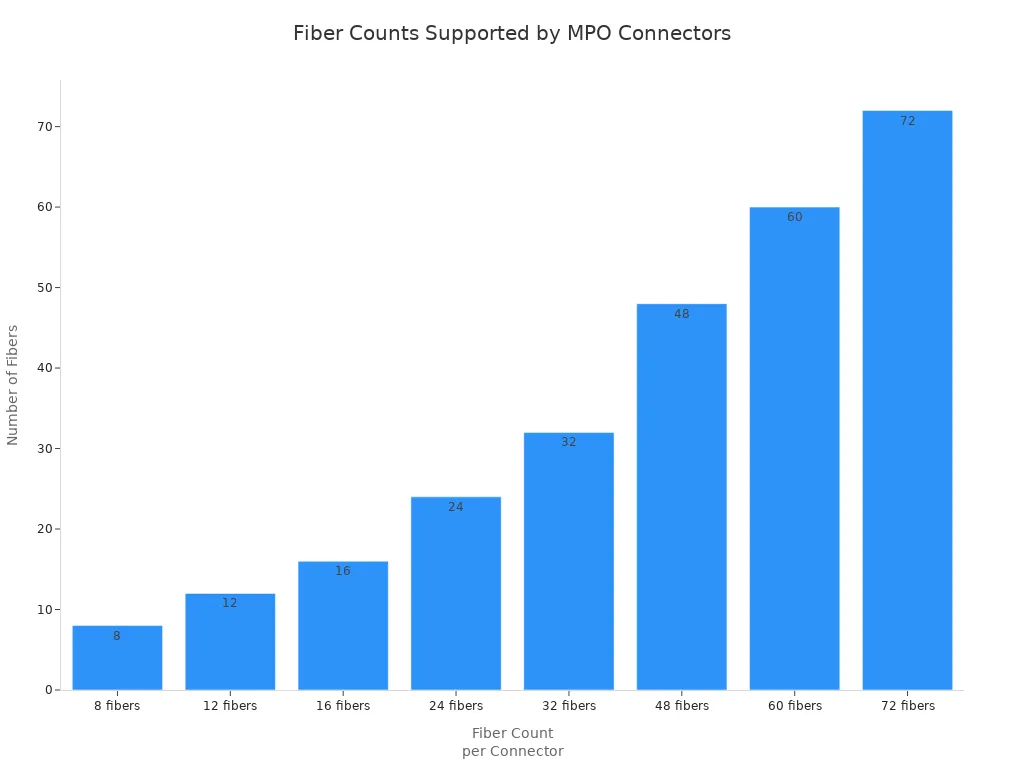

MPO and MTP fiber optic cable connectors hold many fibers at once. You use these connectors for crowded places like data centers. MPO/MTP connectors can hold 8, 12, 16, 24, or up to 72 fibers.
| Connector Type | Locking Mechanism | Ferrule Size | Application Suitability |
|---|---|---|---|
| MPO/MTP | Complicated | 12 or 24 fibers | High-density applications |
| Connector Type | Fiber Count |
|---|---|
| MPO | 8 fibers |
| MPO | 12 fibers |
| MPO | 16 fibers |
| MPO | 24 fibers |
| MPO | 32 fibers |
| MPO | 48 fibers |
| MPO | 60 fibers |
| MPO | 72 fibers |
You pick MPO/MTP fiber optic connectors for fast data and high performance. These connectors help you handle many fibers at once. They are great for big data jobs.
MT-RJ fiber optic connectors are small and hold two fibers. You find MT-RJ connectors in business networks, data centers, and phone systems. The small size saves space and makes them easy to put in.
| Connector Type | Locking Mechanism | Ferrule Size | Application Suitability |
|---|---|---|---|
| MT-RJ | Latch | 2 fibers | Enterprise networks |
You use MT-RJ fiber connector types for:
Data centers
Fast computers
Phone networks
MT-RJ fiber optic connectors give you good data movement and are easy to use. You get strong data and high performance in busy networks.
Note: Each fiber optic connector type has its own shape and job. You should pick the right fiber connector for your network. This helps you get the best data movement and network strength.
Fiber optic connectors come in different shapes and sizes. LC connectors are small. They fit well in crowded places like data centers. SC connectors are bigger. You use them when you have more space. Both LC and SC connectors work with single-mode and multimode fibers. They help send data fast and keep speeds high.
| Connector Type | Size | Mechanism | Application | Insertion Loss (dB) |
|---|---|---|---|---|
| LC | 1.25mm | Push-pull latching mechanism | High-density, data centers | < 0.5 |
| SC | 2.5mm | Plug-in | Telecom networks, offices | < 0.5 |
| MPO/MTP | 12.5x7.6mm | Multi-fiber | High-speed data centers | < 0.5 |
LC and SC connectors work well if you use good cables. The cable and transceiver quality matter more than the connector type. MPO/MTP connectors hold many fibers. They help send lots of data in big networks and cloud computing.
You want connectors that are easy to put in and last long. LC, SC, FC, and ST connectors are simple to install. You do not need many tools. This saves time and work. MTP connectors are also quick to set up and care for. You can use these connectors in many places.
Field termination connectors help you install fast.
MTP connectors make setup easy and quick.
FC connectors need careful handling because they screw in.
Keep connectors clean. Dirt and dust cause most problems. Always check and clean connectors before using them.
| Survey Respondents | Percentage Reporting Dirty Connectors as Cause of Failure |
|---|---|
| Installers | 98% |
| Operators | 80% |
Tip: Use a fiberscope to check connectors. Clean with dry or wet methods if needed. Do not reuse cleaning tissues.
Think about cost when picking a fiber connector. MPO/MTP trunk cables cost less for big jobs. They use fewer cables and save on labor. Harness cables cost more for each one. But you save money if you need to change connections often.
MPO/MTP connectors are best for busy and fast data centers.
LC connectors fit well in small racks and business networks.
SC connectors work great in telecom networks and offices.
FC connectors are tough and work in rough places.
Match the connector type to your job. LC and MPO/MTP connectors save space and help air flow in fast data centers. SC and FC connectors are better for telecom and factory settings.
You need to pick the right connector for your fiber optic system. The single-mode LC connector is popular in new networks. You use it for fast fiber optic connections and long-distance links. This connector works best with single-mode fibers. These fibers let you send more data farther. You see single-mode LC connectors in data centers, telecom rooms, and big company networks.
When you choose a single-mode LC connector, check if it fits your cables. It does not work with multimode OM1 fibers. You should look for OS2 ratings for good performance. The table below shows what you need to know:
| Aspect | Details |
|---|---|
| Fiber Type | Single-mode LC connector not compatible with multimode OM1 fibers |
| Ratings | OS2 rating ensures high performance |
| Connector Types | LC, SC, and MPO must match physical and operational requirements |
You also need to think about technical details. Lower insertion loss means your signal moves better. Higher return loss keeps your signal strong. The single-mode LC connector has low insertion loss and high return loss. This makes it great for strong fiber optic connections.
You must think about where you will use your fiber optic connector. The environment matters a lot. If you put connectors outside, you deal with water, dust, and shaking. Cold weather can freeze water around the fiber. This can bend the cable and hurt your signal. Outdoor cables use tough jackets and waterproof stuff to keep out water.
Here are important things to check:
| Factor | Description |
|---|---|
| Environmental Variables | Exposure to water, dust, vibration, and temperature changes |
| Termination Finishes | Insertion loss, return loss, misalignment, and angularity |
| Maintainability | Ease of repair, cleaning, and resistance to wear |
| Cable Limitations | Bend radius and wavelength range |
| Density Requirements | Space available for connectors |
| Sealing Types | Types of seals needed for protection |
You also need to pick the right polishing style. PC, UPC, and APC finishes change how much light bounces back. APC polishing gives the least back reflection. This is important for fast fiber optic systems.

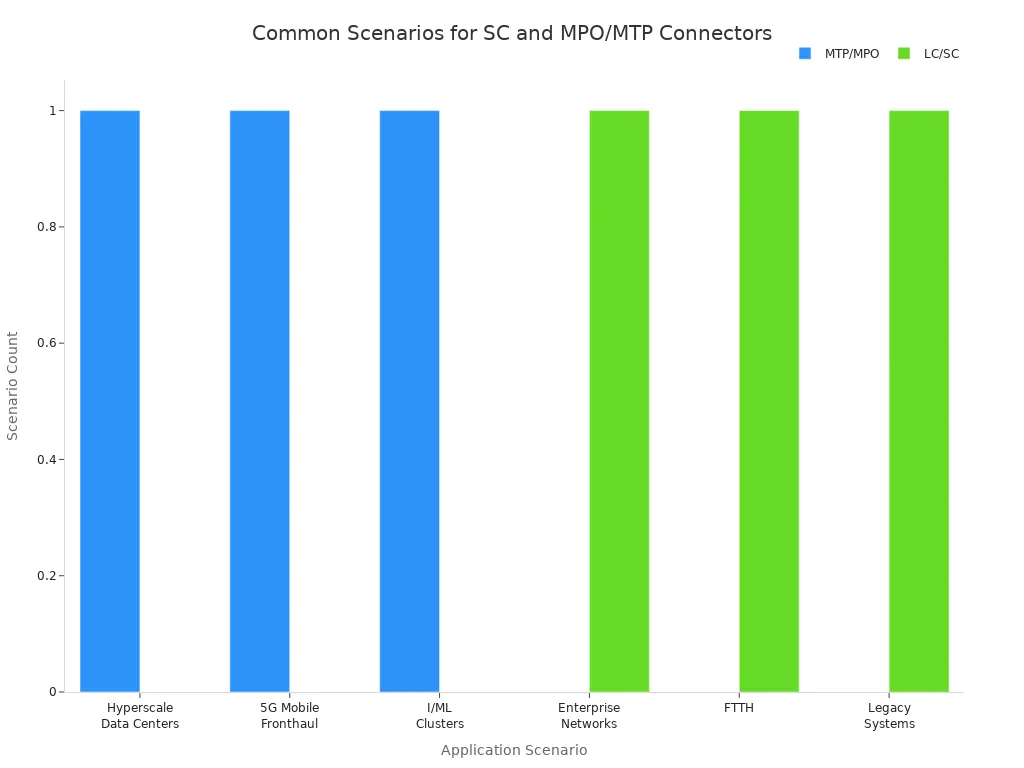

You see different connectors in different places. The chart below shows where you use SC and MPO/MTP connectors:
You use single-mode LC connectors for long links in company networks and telecom rooms. You use MPO/MTP connectors in big data centers and 5G mobile networks. SC connectors work well for home fiber and older systems.
Tip: Always match your connector to your network’s place, cable type, and how well it needs to work. This helps you get the best results from your fiber optic system.
You must pick the right Fiber Connector for your network. Many network problems happen because connectors are dirty or not put in right. About 70% of failures come from these connector issues.
Make sure you clean your connectors carefully.
Choose the type that fits your space and what you need.

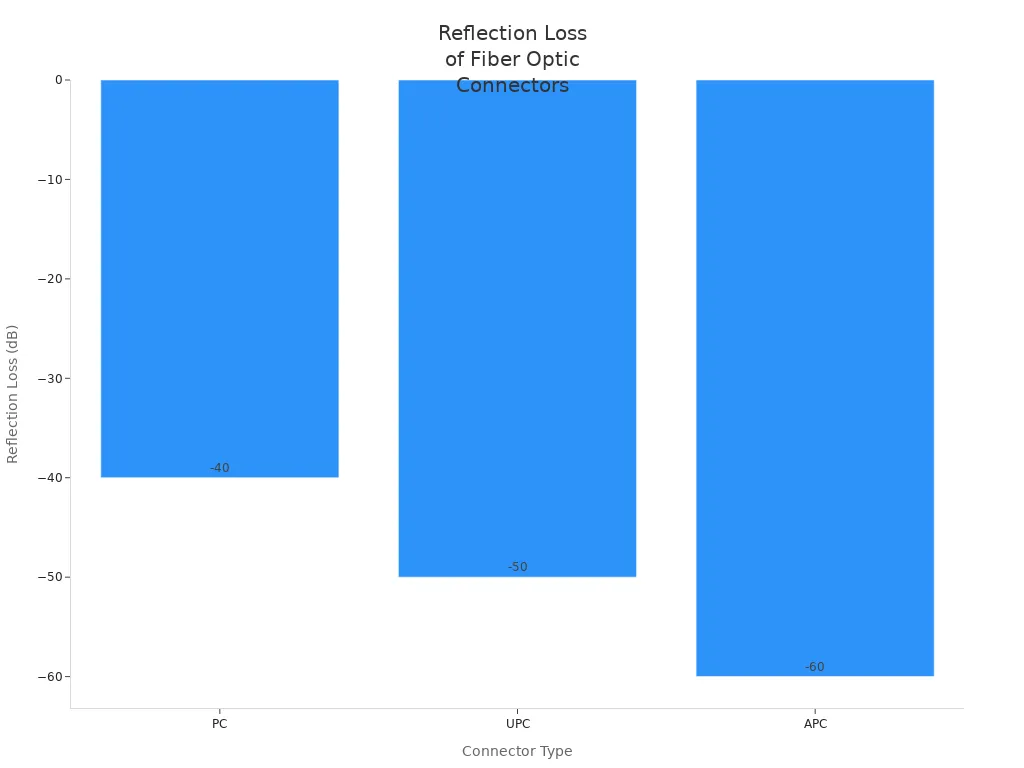

| Connector Type | Description | Reflection Loss |
|---|---|---|
| PC | Physical contact | < -40 dB |
| UPC | Ultra-physical contact | < -50 dB |
| APC | Angled contact | < -60 dB |
New Fiber Connector technology, like bend-insensitive fiber, lets you make networks that work faster and better. Always pick a connector that matches where you use it and how well you want it to work. This helps your network do its best.
You use a fiber connector to join two optical fibers. This lets light signals move from one cable to another with little loss. You get a strong and reliable network connection.
You clean fiber connectors with a special wipe or cleaning tool. Always check for dust before you connect cables. Clean connectors help you avoid signal loss and keep your network working well.
You often use LC and MPO connectors in data centers. These connectors save space and let you connect many fibers quickly. You get fast data movement and easy setup.
You must match the connector type to the fiber type. LC and SC connectors work with both single-mode and multimode fibers, but you need to check the rating before you use them.
Fiber connectors fail because of dirt, poor alignment, or damage. You can prevent most problems by cleaning connectors and checking them before use. This keeps your network strong.
