A PLC Splitter is often treated like a “set-and-forget” passive component: plug it in, route the fibers, and move on. But in real fiber builds—especially PON/FTTH distribution networks—the connector type on the splitter can decide whether your link is clean and stable or filled with unexplained loss, reflections, and intermittent outages.
This guide focuses on one practical question that causes outsized problems in the field: SC/APC vs SC/UPC. If you are sourcing a plc splitter with connector (or installing one that’s already in the cabinet), you’ll learn how to select the right connector polish, how to prevent mismatch loss, and how to troubleshoot quickly when a connection “fits” but still performs poorly.
A PLC Splitter (Planar Lightwave Circuit splitter) divides one optical input into multiple outputs—common ratios include 1×2, 1×4, 1×8, 1×16, 1×32, and 1×64. The splitter itself is passive, but performance depends heavily on how it is integrated into your optical distribution network.

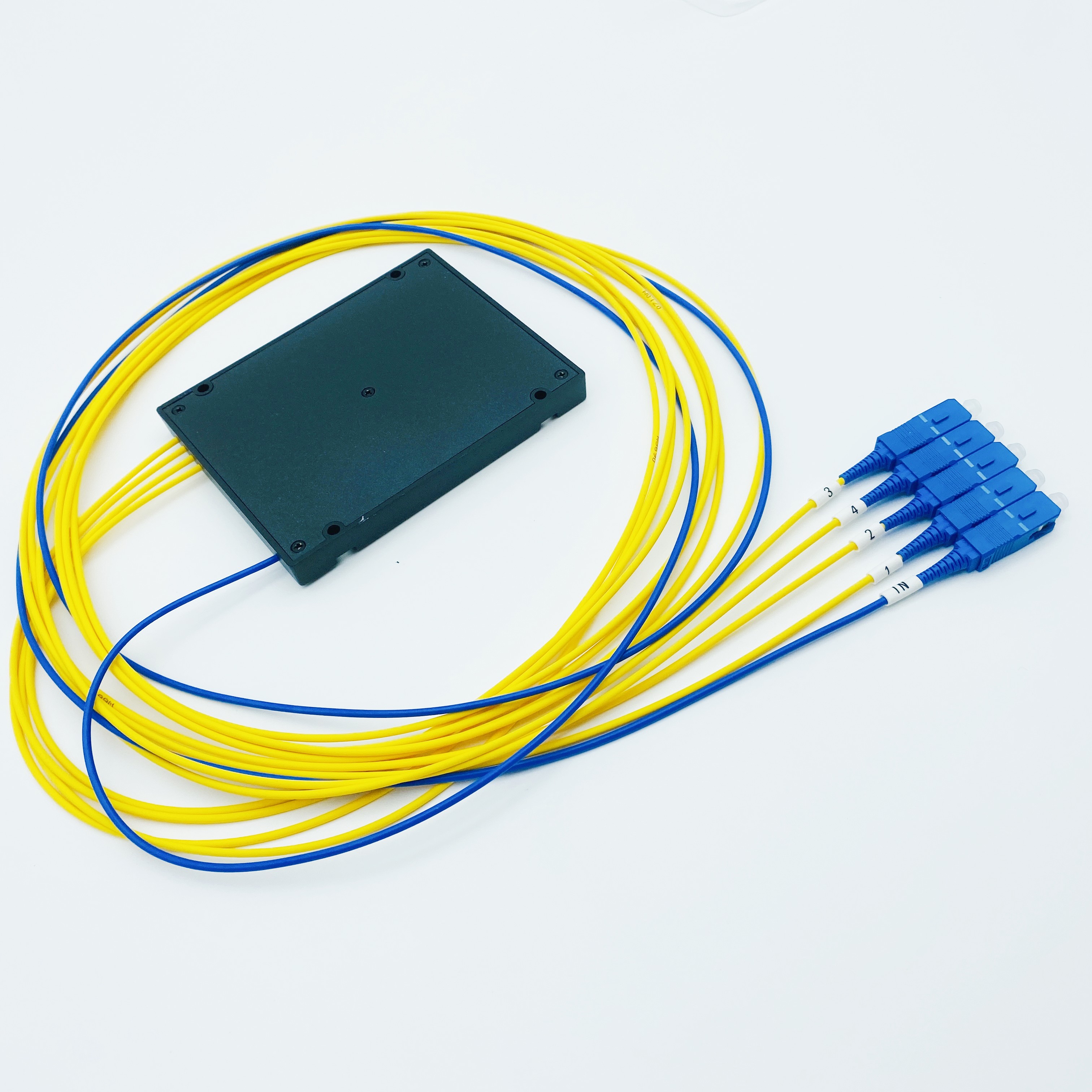

When buyers say plc splitter with connector, they usually mean the splitter is factory-terminated with connectors (commonly SC/APC or SC/UPC) rather than bare fiber pigtails that must be field-terminated or spliced. Connectorized splitters can reduce installation time and simplify replacements, but they also introduce a key risk: mating the wrong polish type at the input or any output port.
In simple terms: a connectorized splitter speeds up work—until mismatch turns into troubleshooting.
SC is a popular connector form factor used in many access networks. It’s known for its push-pull latch mechanism and wide compatibility with common panels, adapters, and drop environments. In most single-mode deployments, SC connectors appear in two common polish styles:
SC/UPC (typically blue): optimized for low insertion loss in standard interconnects.
SC/APC (typically green): optimized for very low back reflection (high return loss), especially in reflection-sensitive systems.
Here’s the catch: while the housing looks similar, the endface geometry is different. That’s where mismatch loss begins.
Connector “polish” describes how the fiber endface is shaped and finished. For modern single-mode networks, the discussion typically focuses on UPC vs APC:
PC (Physical Contact): older standard; still appears in some contexts but is less common in newer access builds.
UPC (Ultra Physical Contact): a refined physical-contact polish with very smooth finish, commonly used for patching and general optical interconnects.
APC (Angled Physical Contact): the endface is polished at an angle (commonly around 8°), which “redirects” reflected light away from the fiber core.
Why does this matter? Because reflections can be just as damaging as attenuation. Even if your power meter looks “close enough,” excessive back reflection can destabilize upstream signals, reduce margin, and create intermittent link behavior that’s hard to reproduce.
If you only remember one rule from this article, make it this: APC mates with APC, and UPC mates with UPC. Everything else builds on that.
Endface geometry: SC/UPC uses a curved endface; SC/APC uses an angled endface. These are mechanically incompatible at the optical interface even if they “click” together.
Color identification: SC/APC is commonly green; SC/UPC is commonly blue. (Always verify labeling—don’t rely on color alone in mixed inventories.)
Performance emphasis: SC/APC is chosen when minimizing reflections is critical; SC/UPC is common for general patching and equipment interfaces that specify UPC.
Typical deployment habits: Access networks and splitters frequently standardize APC to reduce reflection-related issues—while many devices, modules, or older ports may be UPC-only.
Many fiber access designs prefer SC/APC because reflections become more noticeable in real distribution environments: multiple mated pairs, longer runs, splices, and splitter architectures that reduce overall signal margin. In these cases, a plc splitter with connector using SC/APC helps by lowering back reflection at critical connection points.
SC/APC is often selected when:
your network standard (ODN) is APC end-to-end,
you run long distribution paths and want stronger reflection control,
you have legacy field issues tied to reflectance spikes,
you’re integrating splitters into outside plant closures, FDH cabinets, or patch locations with frequent mating cycles.
In short: if your build is “access network first,” APC is commonly the safer default—as long as your equipment ports also support APC.
SC/UPC is still widely used and is often required when your active equipment ports (or existing patch infrastructure) are UPC. Choosing UPC can also reduce confusion in environments where most patching is standardized on blue UPC jumpers.
SC/UPC tends to be the better fit when:
your OLT/ONT ports or intermediate modules specify UPC only,
your facility patching is UPC-standard and tightly controlled,
you’re deploying in an indoor cross-connect environment with clear labeling,
you prefer consistency with existing UPC inventory and spares.
UPC is not “worse”—it’s simply optimized for a different priority and must be matched correctly across the link.
Mismatch loss happens when you mate connector polishes that should not be mated—most commonly SC/APC to SC/UPC. The result can include:
higher insertion loss than expected,
significantly worse return loss (more back reflection),
unstable performance—especially in upstream or reflection-sensitive channels,
possible endface damage over time due to poor physical contact geometry.
One reason mismatch is dangerous is psychological: the connection can feel normal. It can latch. Power might still pass. But the optical interface is compromised, and your margin evaporates where you least expect it—often at the splitter location where multiple ports magnify operational complexity.
Mismatch problems often show up at predictable “handoff” points. Watch these first:
Splitter input mismatch: upstream patch cord is UPC, splitter input is APC (or vice versa).
Splitter output mismatch: drop cable connector polish doesn’t match the splitter output ports.
Wrong adapter type: a green APC adapter used where UPC patching is expected, or mixed sleeves in a panel.
Mixed spare inventory: technicians grab what “looks right” during urgent repairs—blue and green get mixed under pressure.
Label drift: cabinets upgraded over time; old labels remain while connectors change.
Because a PLC Splitter multiplies the number of endpoints, one small mismatch can replicate into a multi-subscriber issue.
Use this checklist whenever you install, replace, or audit a plc splitter with connector:
Standardize first: define “APC network” or “UPC network” per site/cabinet and enforce it on every port.
Match polish types: APC-to-APC only; UPC-to-UPC only. Never rely on “it fits.”
Use clear labeling: tag splitter input and outputs with large, readable polish identifiers (APC/UPC), not just color.
Control adapters: keep APC adapters physically separated from UPC adapters in inventory; label drawers and panel rows.
Inspect–Clean–Inspect: contamination mimics mismatch symptoms. Clean before you blame the splitter.
Train for quick visual checks: green/blue is a fast hint, but always confirm markings on the connector/adapter.
Write better purchase specs: in your BOM, specify: split ratio + fiber type + connector form factor + connector polish for input and outputs.
If your design truly requires a transition (for example, a UPC equipment port feeding an APC-standard distribution), handle it intentionally using the correct transition components and document it clearly. “Accidental transitions” are where downtime begins.
When sourcing a PLC Splitter, connector choice should be specified as clearly as split ratio. A good procurement spec typically includes:
Split ratio: 1×8, 1×16, 1×32, etc., aligned with optical budget and subscriber planning.
Fiber type: single-mode for access networks; consider bend-insensitive options for tight routing.
Connector configuration: specify connector type and polish for both input and outputs (e.g., “SC/APC input, SC/APC outputs”).
Packaging: bare, ABS module, LGX cassette, rack-mount, or closure-ready—based on where it will live.
Test expectations: ask for insertion loss consistency, uniformity, and return loss/reflectance reporting where relevant.
Most operational problems don’t come from the splitter chip—they come from ambiguous connector specs and inconsistent field inventory.
A clean installation is one you can verify quickly. After connecting your plc splitter with connector:
Start with endface hygiene: inspect and clean each mating pair before final seating.
Measure insertion loss: verify the link budget remains within expectations for your split ratio and distances.
Check reflectance/return loss if available: particularly valuable in reflection-sensitive PON links.
Document port mapping: record which output serves which drop—include connector polish in the map.
Even a simple “connector map” taped inside the cabinet door can prevent repeat failures during the next maintenance cycle.
If the link is unstable or loss is higher than expected, don’t guess—run a fast elimination sequence:
Inspect and clean the connector endfaces (both sides). Contamination is the #1 look-alike for mismatch problems.
Verify polish matching at the exact problem port: adapter color + connector markings + cabinet documentation.
Swap with a known-good matched jumper (APC/APC or UPC/UPC). If performance returns, your original patch cord may be wrong or damaged.
Check adapters/sleeves: worn sleeves cause instability; wrong adapter types create hidden mismatch points.
Inspect for physical damage: repeated mismating can scar the endface; replace any connector that shows scratches or chips.
Because a PLC Splitter fans out signals, a single mismatch can present as “multiple random subscriber issues.” When you see patterns across several outputs, always audit the splitter input and upstream patch panel first.
HoLight Optic: Highlights SC/APC vs SC/UPC differences by endface geometry and typical color coding, and treats APC as a common choice in access/distribution networks where reflection control is important.
Fiberoptic platform: Emphasizes adapter/connector matching discipline and warns that mismatch creates avoidable service headaches through preventable interface errors.
Link-PP: Focuses on return loss as the practical differentiator and warns that mixing APC with UPC can cause abnormal loss and potential endface damage.
Fibercheap: Frames mismatch and contamination as frequent causes of poor performance and reinforces process control (handling, caps, and cleaning routines) as prevention.
WeUnionFiber: Argues that APC is not universally compatible with all network equipment and stresses aligning connector choice with device/interface requirements.
VCELINK: Presents APC as a strong option for lowering back reflection, while also underscoring strict APC-to-APC pairing to avoid large penalties.
QSFPTEK: Differentiates APC/UPC/PC by endface and return loss targets and recommends selecting connector types based on system design and compatibility needs.
FiberOptics subreddit: Users commonly discuss APC/UPC mix-ups as a real-world source of unexpected loss/reflectance issues and emphasize matching polish types over “just making it connect.”
Low-voltage community groups: Discussions often treat mismatch as a recurring field mistake and push simple controls like consistent labeling and keeping APC/UPC parts separated in inventory.
YouTube tutorials: Typically teach quick identification and demonstrate that a physically latched connection can still be optically wrong due to polish mismatch and reflectance problems.
Can SC/APC and SC/UPC be connected together?
They may physically mate in some situations, but it is not recommended. Mismatch can increase loss, worsen return loss, and may damage endfaces over repeated connections. Match APC with APC and UPC with UPC.
Is mismatch loss always obvious on a power meter?
Not always. Some links still pass power, but reflections can create unstable performance. That’s why checking polish type and maintaining clean endfaces is essential.
Why do I see PLC splitters frequently supplied with SC/APC?
Many access/distribution builds standardize APC to reduce back reflection in networks with multiple connection points and tighter optical margins. The right answer still depends on your equipment ports and site standard.
What’s the safest way to order a plc splitter with connector?
Specify split ratio, packaging style, fiber type, and the exact connector polish for input and outputs (for example, “SC/APC input and SC/APC outputs”). Avoid ambiguous wording like “SC connector” without the polish type.
What should I do if I suspect a mismatch already happened?
Stop repeated mating attempts, inspect and clean, confirm connector markings, and replace any damaged cords/adapters. If the endface is scratched or chipped, replacement is usually faster than chasing intermittent faults.
