Integrating a PLC Splitter into real-world fiber distribution hardware is not just a “where do I mount it” question. Good integration decisions affect optical budget, installation time, troubleshooting speed, future expansion, and even how many truck rolls you’ll need over the life of the network. Whether you’re designing an ODF in a central office, a field distribution hub (FDH) for FTTx, or a sealed splice closure in the outside plant, the goal is the same: make the plc splitter module easy to deploy, easy to document, and hard to mis-handle.
This guide walks through form-factor selection, mechanical and optical design checklists, and practical step-by-step integration patterns for ODF/FDH/closure designs—without assuming a single vendor ecosystem. You’ll also find a “perspectives” module that lists how different companies and communities talk about plc splitter module integration.
A PLC Splitter is a passive device, but your integration choices determine how “active” your operations become later. Small layout mistakes can cascade into issues like unexpected insertion loss, crushed fibers, confusing port maps, connector contamination, or slow service activation. In many deployments, the plc splitter module becomes the core handoff point between feeder and distribution—so it must be designed around:
Optical performance: stable loss, consistent output balance, predictable test points.
Mechanical protection: bend-radius control, strain relief, safe slack storage.
Serviceability: quick access, clear labeling, straightforward module replacement.
Scalability: planned spare capacity and a clean growth path.
A PLC Splitter (Planar Lightwave Circuit splitter) divides one optical input into multiple outputs (e.g., 1×8, 1×16, 1×32, 1×64). Inside an ODF/FDH/closure design, a plc splitter module is typically implemented as a packaged unit (cassette, tray, mini module, ABS box, plug-in) that standardizes mounting and cable handling.
Split ratio and output count: impacts port density, routing, and labeling.
Insertion loss (IL): drives link budget and how much margin you allocate for connectors/splices.
Uniformity: affects how consistent the outputs are—important for troubleshooting “one customer weak” cases.
Return loss / reflectance: influenced by connector types and cleanliness practices.
Wavelength window: align with your PON plan and testing approach.

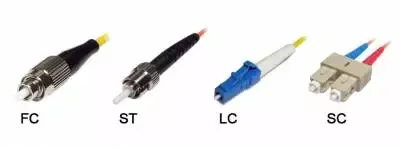

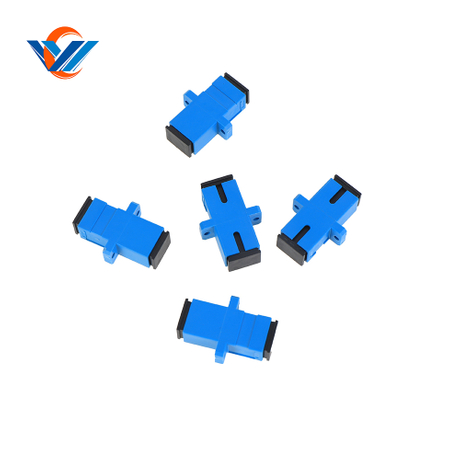

Many headaches come from connector mismatches and uncontrolled patching. Decide early whether your system standard is APC or UPC. Then enforce it via adapter color conventions, part numbers, and documentation. A well-integrated plc splitter module reduces the chance of accidental cross-polish patching in the field.
There is no single “best” plc splitter module for every environment. Instead, match packaging to where it will live and who will touch it.

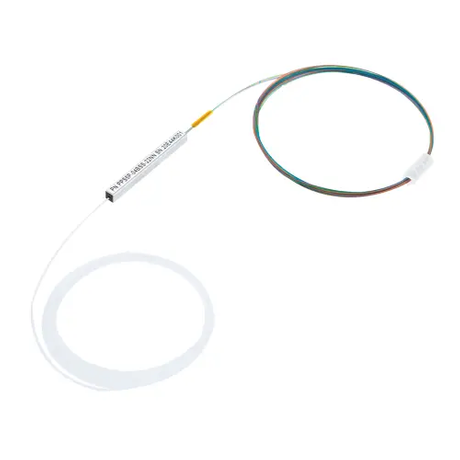

Bare-fiber / steel tube: ideal for splice closures and compact trays where you want maximum flexibility and minimum bulk.
Fanout / buffered legs: useful when you need stronger handling protection and easier routing to adapters.
ABS box: practical in small wall boxes, compact FDH designs, or simple distribution cabinets.
LGX cassette/module: a go-to choice for rack-based ODF designs and structured cabinet layouts.
Mini plug-in module: designed for quick insertion into compatible chassis or module frames—good for standardized FDH ecosystems.
Tray / shelf splitter assemblies: helpful when your ODF is built around trays and front-access routing lanes.
Bare-fiber (splice): better when you want sealed reliability, low connector count, and strong control over fiber routing. It’s often preferred in closures.
Connectorized (plug-and-play): better when you need faster activation, modular swap capability, and simplified training for field technicians—common in FDH/ODF modules.
Think of integration as a “workflow design” more than a mechanical design. You’re defining how fiber moves through the product and how technicians interact with it.
In an ODF, the PLC Splitter is usually a structured asset: mounted in a rack unit or cassette bay, with clean front access, predictable patching, and strict port management. Here, your plc splitter module should support:
High-density adapter presentation without congestion.
Clear separation of feeder input, splitter input, and subscriber output mapping.
Repeatable documentation: “port x = output y” should be unambiguous.
An FDH is designed for staged growth. A plc splitter module may be inserted as demand increases, with unused outputs “parked” until service activation. Your design should handle:
Module insertion/removal with minimal disruption.
Parking areas for unused connectors to keep them clean and protected.
Field-friendly cable routing lanes and slack storage.
A closure is a harsh environment with limited internal real estate. A closure-based PLC Splitter integration should focus on safe routing, seal integrity, and splicing discipline. The best plc splitter module choices here prioritize compact packaging and straightforward tray routing.
Before locking your mechanical drawings, validate the following items with realistic cable and connector dimensions—not just nominal CAD blocks.
Mounting and access: can a technician reach the module, adapters, and tie points without bending fibers?
Bend radius protection: add guides and routing walls to prevent accidental “kinks” near ports.
Strain relief: clamp points for incoming feeder and outgoing distribution to isolate fibers from pull force.
Slack storage: dedicated loops for feeder pigtails and output legs so servicing doesn’t become a knot.
Segregated routing lanes: separate feeder, splitter input, and output routing to reduce crossovers.
Dust/contamination control: parking positions or protective covers for unused connectors in FDH/ODF.
Labeling surfaces: ensure there is physical space for durable labels and legible numbering.
Even a perfectly mounted plc splitter module can cause headaches if the optical plan is unclear. Validate these optical items early:
Single-stage vs cascaded splitting: cascaded designs can simplify distribution but complicate loss and troubleshooting.
Connector count: each connector introduces loss and reflectance risk; minimize where reliability matters most.
Splice strategy: define where splices occur (closure tray, FDH splice cassette, ODF tray) and how they’re protected.
Test access: decide where a tech can test the feeder, the splitter input, and each output without dismantling hardware.
Margin planning: reserve realistic margin for aging, contamination, rework, and field variability.
Use this workflow when designing rack-based environments and structured patching systems.
Reserve dedicated bays for the PLC Splitter cassettes (and leave growth slots).
Group modules by split ratio to reduce confusion (e.g., 1×32 modules in one zone).
Plan front-access service loops for safe removal of a plc splitter module.
Feeder enters the ODF and lands on a defined input patch or splice point.
Splitter input is patched or spliced from the feeder point to the splitter’s input port.
Splitter outputs land on an output adapter field that maps to distribution fibers/subscriber ports.
Create a port map where each output number has a fixed physical location.
Use labels that survive cleaning and handling (not paper stickers that peel).
Include a “service notes” area: connector type, polish type, and cleaning instructions.
Inspect and clean connectors before patching.
Measure insertion loss through the PLC Splitter path.
Record OTDR traces where applicable and store them with the port map.
FDH designs emphasize modularity, staged activation, and fast service turn-up.
Define how many plc splitter module slots the FDH supports now and at full build-out.
Leave clear cable lanes so adding a module later doesn’t force rework.
Provide tool access for insertion/removal without disturbing neighboring fibers.
Add parking positions for unused connectorized outputs so dust caps stay on and connectors stay protected.
Make parking fields physically separated from active routing to prevent accidental disconnects.
Installer identifies the correct output port using the port map.
Moves the output from parked to active routing.
Patches to the distribution fiber/connector field.
Performs a quick validation test and updates records.
Even passive modules can be damaged by contamination or handling. A field-replaceable plc splitter module should have:
Clear “release” mechanics without sharp edges that snag fibers.
Service loops that allow module removal without pulling on connectors.
Numbering that remains consistent even after swapping a module.
In closures, your priorities are compactness, sealing, and fiber protection.
Place the PLC Splitter where fiber routing can remain gentle and predictable.
Keep splices in dedicated trays, not floating bundles.
Plan stacking so trays can be opened for service without tearing up routing.
Feeder fiber is prepped and routed to the splice tray.
Feeder is spliced to the splitter input pigtail (or to an internal pigtail that feeds the module).
Splice protectors are seated properly and secured in the tray.
Route each output leg along designed guides (avoid crossovers).
Use tie points to prevent movement when the closure is handled.
Keep slack loops controlled so the closure can be re-opened safely.
Confirm ports and glands fit the cable OD and are sealed correctly.
Ensure unused ports are properly sealed.
Perform a post-assembly optical check to validate the splitter path.
Bend radius violations near the module: the tightest turns often happen right at the port—add guides and space.
Overcrowded routing lanes: dense layouts without routing discipline become unserviceable quickly.
Ambiguous port numbering: if two technicians interpret the map differently, you’ll get mispatches.
Connector contamination: a single dirty connector can look like a “bad splitter.” Build in parking and cleaning workflow.
No growth path: designs that work at day-1 fail at day-365 when capacity doubles.
To keep operations predictable, define what “good” looks like at installation and during troubleshooting. For a PLC Splitter path, your acceptance plan should include:
Insertion loss verification across representative ports (and record results).
Event documentation (splice points, connector points, module location IDs).
As-built records: port map + module serial/ID + photos (where allowed) + test reports.
Maintenance procedures: cleaning frequency, parking rules, and replacement criteria for the plc splitter module.
CommScope: Often highlights chassis-based, plug-in splitter modules designed for modular capacity growth and standardized field workflows in FDH-style systems.
FS: Frequently demonstrates closure-oriented installation flows that emphasize organized cable routing, secure placement, and practical handling steps inside compact enclosures.
FCST: Commonly frames selection around packaging methods and application range, linking module format choices to where the splitter will be deployed (rack, cabinet, closure, box).
FIBCONET: Focuses on field-oriented connectivity approaches and step-based installation practices for integrated assemblies, emphasizing process consistency.
HYC: Often discusses PLC splitters from a technology and manufacturing stability perspective, emphasizing the planar waveguide approach and reliable performance.
KDM: Tends to organize guidance by application scenarios in FTTH networks, highlighting how splitter modules appear in distribution architectures and how packaging influences deployment.
OFS: Frequently positions connectorized or direct-connect style solutions as a way to speed installation and simplify maintenance when modular replacement is valued.
Reddit Fiber community: Typically shares real-world troubleshooting stories and practical cautions about interoperability assumptions, field cleanliness, and how “simple passive parts” can still cause complex issues.
You can standardize partially, but the best module depends on environment and workflow. ODF and FDH often benefit from connectorized modular cassettes, while closures usually prioritize compact splice-based packaging and robust sealing practices.
Choose based on your optical budget, subscriber density, and growth plan. Higher split ratios increase reach constraints and raise sensitivity to connector cleanliness and incremental losses. Your FDH layout should also reflect how many outputs you can manage cleanly and label reliably.
Use a physical layout that mirrors the port map, apply durable labels, enforce consistent numbering conventions, and include parking fields for unused outputs. Consider color-coded adapters or keyed panels where standards allow.
Not always. Plug-and-play speeds activation and replacement, but it increases connector count and contamination risk. Splicing can reduce connector-induced uncertainty, which is often preferred in sealed closure deployments.
Start with connector inspection/cleaning and validate power levels at accessible test points before replacing the plc splitter module. Many “bad splitter” cases are actually dirty connectors, wrong patching, or documentation mistakes.
The best PLC Splitter integration is the one that stays clear and maintainable when the network scales, when different technicians touch it, and when troubleshooting happens under pressure. If you treat the plc splitter module as a system interface—mechanical, optical, and operational—you’ll get a design that installs faster, tests cleaner, and supports future growth with fewer surprises.
