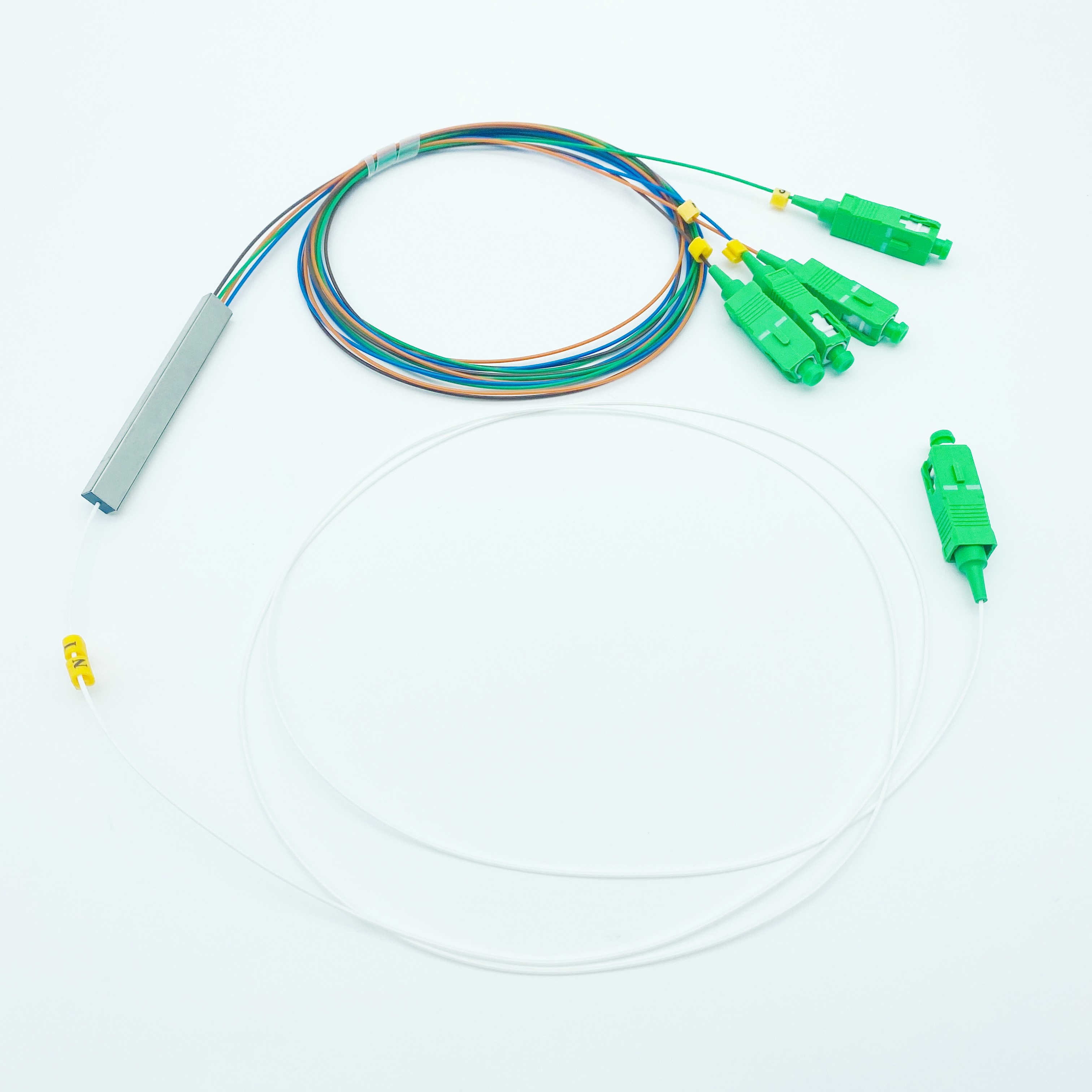

If you’re buying a PLC Splitter for an FTTH/FTTx or PON build, split ratio is only half the story. The other half—often the part that makes or breaks installation speed and long-term signal stability—is choosing the fiber length and the connector type. In this guide, you’ll learn a practical way to select the right fiber length and connector polish (UPC/APC) for a plc splitter with connector, so it fits your cabinet layout, matches your adapters, and avoids costly rework.
A PLC Splitter can be used in many physical locations: patch panels/ODF rooms, indoor distribution boxes, MDU corridors, splice closures, and outdoor cabinets. Before you choose fiber length and connector type, lock down these three items:
Installation point: rack/ODF, wall box, splice tray, or outdoor enclosure.
Termination method: will you plug directly into adapters (pre-terminated), or splice into pigtails?
Port density constraints: tight panels may benefit from higher-density connector formats.
This step prevents the common mistake of ordering a plc splitter with connector that has the “right” split count but the wrong tail lengths or incompatible connector polish.
Fiber length should be based on the actual routing path inside your cabinet or closure—not the distance you can measure with a ruler across open space. For a PLC Splitter installed in an ODF or fiber distribution box, the true path typically includes:
Entry point to tray/channel
Routing around corners and cable managers
Service loop area (for maintenance)
Final landing position on adapters/ports
Tip: If your environment requires frequent changes (moves/adds/changes), add extra service slack so connectors can be re-patched without bending stress or pulling on the splitter tails.
Fiber length choice differs depending on how your plc splitter with connector is integrated:
Direct patching to adapters: choose lengths that reach the adapter row comfortably with a tidy service loop. Too short increases bend risk; too long clutters and blocks airflow.
Splice-tray workflows: if the splitter lives near a splice tray, you may need shorter tails, but still enough slack for tray re-entry and future splicing.
Outdoor cabinet/closure: route protection matters; what seems “long enough” on paper may become “too short” after routing through glands, seals, and protective tubing.
Many buyers assume all tails should be the same length. In practice, input and outputs often need different lengths:
Input tail: typically routes to a feeder fiber or upstream adapter/port. It may need extra slack for testing or re-termination.
Output tails: route to drop fibers or distribution ports. In high-density panels, outputs may be shorter to reduce congestion—while still keeping minimum bend radius safe.
When ordering a PLC Splitter, specify whether you need equal-length outputs (useful for neat dressing) or custom lengths per output group (useful for multi-row adapter layouts).
Suppliers commonly offer standard pigtail/tail lengths (often around 1–2 meters), plus customization. A practical rule:
If you’re unsure, avoid “bare minimum” length. A small amount of additional slack is cheaper than replacing a splitter assembly that can’t reach the port.
But don’t oversize blindly. Excess fiber can create microbends, messy routing, and higher handling risk in crowded enclosures.
The “best” connector is usually the one that matches your existing adapters, panels, and field tools. For a plc splitter with connector, confirm:
What connector interface is standard on your patch panels or distribution boxes (e.g., SC or LC)
What the upstream equipment and test cords are terminated with
Whether your environment prioritizes density (more ports in less space) or rugged field handling
Both SC and LC are widely used, but they solve different problems:
SC connectors: often chosen for telecom distribution points due to simple handling, robust feel, and widespread compatibility in access networks.
LC connectors: typically chosen when port density is a priority. In tight racks or compact plug-in splitter modules, LC can reduce crowding and improve cable management.
Choose based on your enclosure and port plan—not personal preference. A PLC Splitter that is perfect electrically can still be “wrong” if it physically conflicts with adapter density or cable routing.
The connector polish type affects reflection (return loss) and overall link performance. For many FTTH/PON deployments:
APC (Angled Physical Contact): commonly selected when lower back-reflection is desired, especially in access scenarios sensitive to reflections.
UPC (Ultra Physical Contact): widely used in many general single-mode applications and patching systems.
PC (Physical Contact): less common in modern access builds compared to UPC/APC, but still appears in some legacy contexts.
Important: Do not mix APC and UPC in the same mating interface. Even if it “seems to fit,” it can cause performance problems and may damage endfaces over time. Always specify polish clearly when buying a plc splitter with connector.
Field mistakes are expensive. Improve install reliability by standardizing:
Color and labeling: use consistent labeling conventions for APC vs UPC across panels and splitter assemblies.
Cleaning discipline: treat every connector endface as contaminated until cleaned and inspected.
Port planning: clearly separate APC and UPC zones in cabinets where possible.
A PLC Splitter introduces insertion loss by design—higher split counts mean more loss. Connectors then add their own insertion loss and reflection behavior. In a real network, these effects stack up. That’s why connector selection isn’t only about “fit,” but also about:
Stable insertion loss: consistent connections reduce variation between ports.
Return loss control: correct polish selection helps manage reflection in sensitive links.
Reliability under handling: poor connector discipline can degrade performance faster than expected.
If your link budget is tight, treat “connector type and polish” as a performance decision—not a cosmetic one—especially for a plc splitter with connector that will be patched frequently.
To avoid back-and-forth with suppliers, specify your PLC Splitter like this:
Splitter type: 1×N or 2×N (e.g., 1×8, 1×16, 1×32)
Packaging/form factor: bare fiber, ABS module, LGX cassette, rack-mount, plug-in style
Fiber type: single-mode (typical for access networks)
Connector interface: SC or LC (or other as required)
Connector polish: APC or UPC (specify explicitly)
Fiber jacket/OD: 0.9 mm / 2.0 mm / 3.0 mm and indoor/outdoor rating
Fiber length: input tail length and output tail length(s)
Testing/report: insertion loss / return loss expectations and test documentation if required
This checklist makes your request unambiguous and helps ensure the delivered plc splitter with connector matches your cabinet layout and patching workflow.
Mismatching APC and UPC: standardize polish type per cabinet zone and label clearly.
Ordering tails too short: measure the routed path and include service slack for maintenance.
Ignoring density constraints: verify whether SC vs LC impacts your patch panel crowding.
Overstuffing with extra length: avoid excessive slack that creates microbends and messy routing.
Skipping endface hygiene: always clean before every mate; contamination is a top cause of performance drift.
It depends on your existing ecosystem and reflection sensitivity. Many FTTH environments standardize on APC to help control reflections, while UPC remains common in many patching systems. The best choice is the one that matches your adapters and is used consistently end-to-end. For a plc splitter with connector, consistency matters more than theory.
Measure the routed path from the splitter location to the upstream port for the input, and from the splitter to each output landing point for outputs. Add service slack for maintenance access, then pick lengths that dress cleanly without pulling tight or overfilling the enclosure.
No. LC can help with density in compact panels, but SC may be easier for field handling and is widely deployed. Choose based on your enclosure, port count, and how technicians will work with the assembly.
Confirm split ratio, form factor, connector interface, connector polish (APC/UPC), fiber jacket/OD, and the exact input/output fiber lengths. This prevents the most common deployment delays and ensures your PLC Splitter integrates smoothly from day one.
